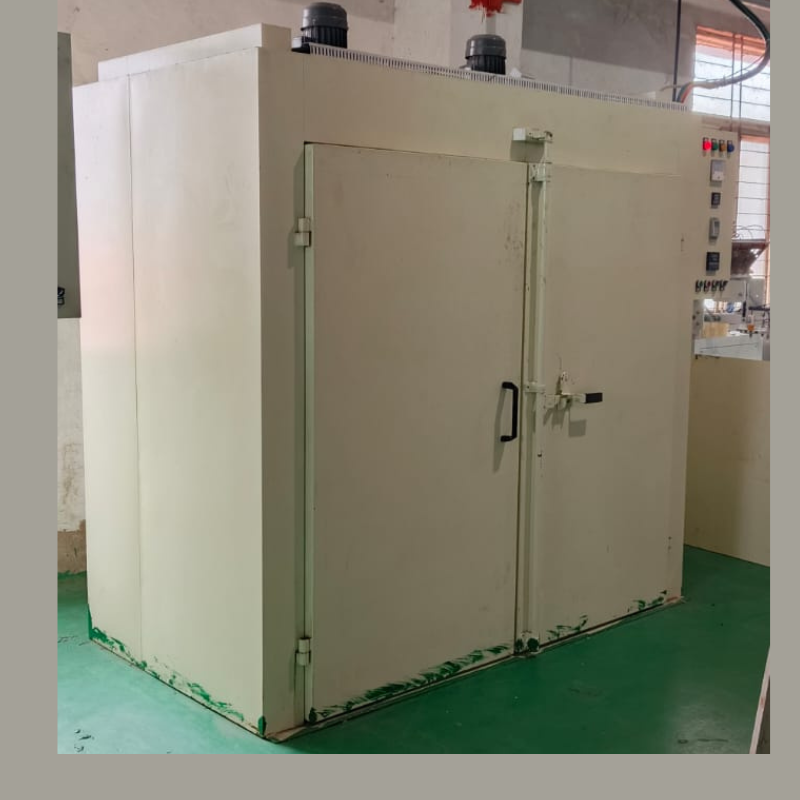

Industrial Drying Oven – Electric Heating / Continuous Operation
Industrial Drying Oven – Electric Heating / Continuous Operation
High-efficiency Industrial Drying Oven with precise electric heating and continuous operation for consistent drying, baking, and heat treatment processes. Built with SUS 304 stainless steel inner chamber, advanced airflow design, and international-grade control components for reliable and uniform performance.
If you have any questions or need assistance, please don't hesitate to reach out to us!
Contact UsThe TechShop Engineering Industrial Drying Oven is designed for industrial-scale drying, baking, and heat treatment applications.
It features an electric heating system that quickly raises temperatures from room temperature to 120°C within 10–15 minutes, ensuring maximum productivity.
Equipped with a horizontal air supply system and a specially designed air circuit, the oven guarantees even temperature distribution and uniform airflow throughout the chamber.

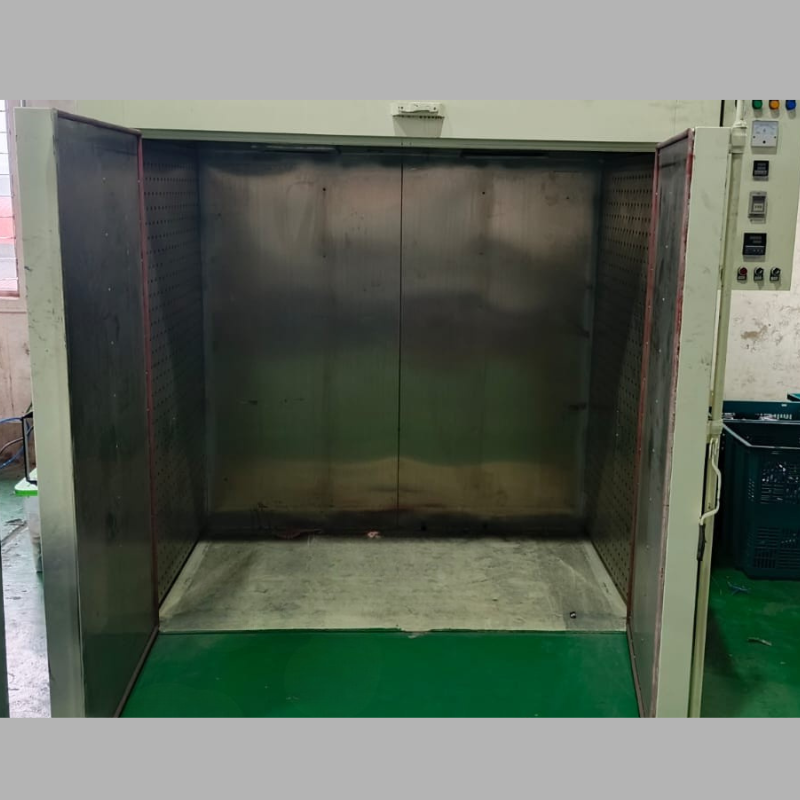

Its SUS 304 stainless steel inner chamber ensures durability and cleanliness, while the MS outer cabinet adds strength and a professional appearance.
With integral silicon rubber door seals for airtight performance and international standard electrical components, the system delivers long service life and precision control.
The oven includes an over-temperature protection system with alarm, ensuring operational safety.
Its continuous operation design makes it ideal for high-volume industrial use.
| Parameter | Specification |
|---|---|
| Model | To be specified by customer |
| Type | Electric Heating / Continuous Operation |
| Temperature Range | 60°C – 120°C |
| Heating Time | Room temperature to 120°C within 10–15 minutes |
| Operation Pressure | Atmospheric |
| Heating Mode | Electric |
| Air Flow Type | Direct horizontal air flow |
| Air Movement | Fixed |
| Air Supply System | Horizontal air supply with special circuit design ensuring even temperature |
| Air Source | Intake – 4 / Exhaust – 2 |
| Structure Type | Double door (both sides wide open) |
| Inner Chamber | SUS 304 stainless steel |
| Outer Cabinet | Mild Steel (MS) plate |
| Door Seal | Integral formed silicon rubber |
| Control Components | International famous brand components |
| Protection System | Over-temperature protection with alarm |
| Blower Motor | 2800 RPM / 1.1 kW / 440V |
| Power Supply | 440V, 3 Phase |
| Weight (Approx.) | 400 kg |
| Production Cycle | Depends on product drying process |
🔹 Applications
Ideal for:
-
Baking, drying, solidification, and heat treatment
-
Industries: Machinery, chemical, plastic, light industry, and laboratories
-
Material aging, silver paste solidification, and ink drying
🔹 Customization
Custom-built ovens available according to specific production and process requirements — temperature range, size, air flow pattern, and automation features can be tailored to your needs.
